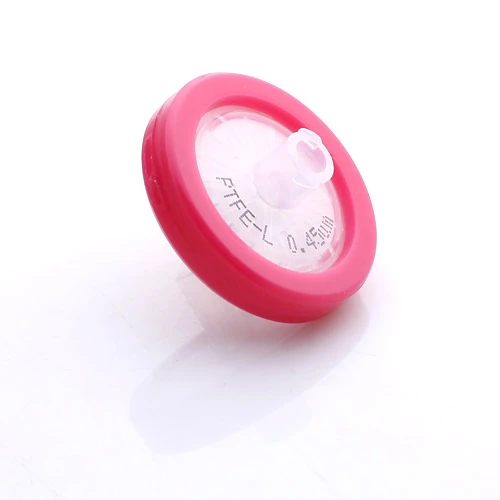

PTFE syringe filter is widely used in the HPLC field, escpecially for sample preparation. PTFE syringe filter means Telfon syringe filter, it can stand PH from 1 to 14, can stand strong acid and alkali MICOBIO PTFE syringe filter have three size, 13mm, 25mm and 30mm. And we have both hydrophobic PTFE and hydrohilic PTFE syringe filter.
Application
- HPLC sample preparation
- Routine QC analysis
- Content uniformity
- Removal of protein precipitate
- Dissolution testing
- Food analysis
- Bioscience analysis
- Environmental samples
Technical specifications
|
Parameters |
13mm |
25mm |
30mm |
|
Effective Filtration Area(cm2) |
1 |
3 |
4.5 |
|
Maximum Pressure |
87psi (6.0 bar) at 20 °C |
87psi (6.0 bar) at 20 °C |
87psi (6.0 bar) at 20 °C |
|
Maximum Operating Temperature |
50 °C |
50 °C |
50 °C |
|
Materials of Construction |
Housing: Polypropylene |
Housing: Polypropylene |
Housing: Polypropylene |
|
Filtration Media |
PTFE |
||
|
Holdup volume (μl) |
<25 |
<100 |
<200 |
|
Sample volume (ml) |
<10 |
<100 |
<200 |
|
Connectors |
Inlet: Female Lμer Lock Outlet: Male Slip Luer |
Inlet: Female Luer Lock Outlet: Male Slip Luer |
Inlet: Female Luer Lock Outlet: Male Slip Luer |
|
Flow Direction |
Inlet: Female Luer Lock Outlet: Male Slip Luer (MSL) |
Inlet: Female Luer Lock Outlet: Male Slip Luer |
Inlet: Female Luer Lock Outlet: Male Slip Luer |
Product Information
|
Item |
Description |
Package |
|
MBPTFE13022H |
Hydrophobic PTFE nonsterile syringe filter, 13mm, 0.22um |
100pcs/pk |
|
MBPTFE13045H |
Hydrophobic PTFE nonsterile syringe filter, 13mm, 0.45um |
100pcs/pk |
|
MBPTFE25022H |
Hydrophobic PTFE nonsterile syringe filter, 25mm, 0.22um |
100pcs/pk |
|
MBPTFE25045H |
Hydrophobic PTFE nonsterile syringe filter, 25mm, 0.45um |
100pcs/pk |
|
MBPTFE30022H |
Hydrophobic PTFE nonsterile syringe filter, 30mm, 0.22um |
100pcs/pk |
|
MBPTFE30045H |
Hydrophobic PTFE nonsterile syringe filter, 30mm, 0.45um |
100pcs/pk |
|
MBPTFE13022L |
Hydrophilic PTFE nonsterile syringe filter, 13mm, 0.22um |
100pcs/pk |
|
MBPTFE13045L |
Hydrophilic PTFE nonsterile syringe filter, 13mm, 0.45um |
100pcs/pk |
|
MBPTFE25022L |
Hydrophilic PTFE nonsterile syringe filter, 25mm, 0.22um |
100pcs/pk |
|
MBPTFE25045L |
Hydrophilic PTFE nonsterile syringe filter, 25mm, 0.45um |
100pcs/pk |
|
MBPTFE30022L |
Hydrophilic PTFE nonsterile syringe filter, 30mm, 0.22um |
100pcs/pk |
|
MBPTFE30045L |
Hydrophilic PTFE nonsterile syringe filter, 30mm, 0.45um |
100pcs/pk |
|
MBPTFE30022L |
Hydrophilic PTFE nonsterile syringe filter, 13mm, 0.22um |
100pcs/pk |
